0.5KΩ-2000KΩ Resistance Range Highly Accurate NTC Thermistor For DIP Resistor Installation

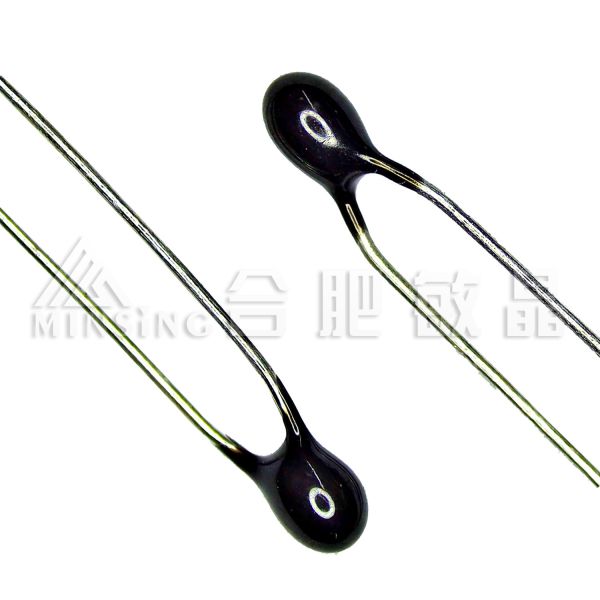

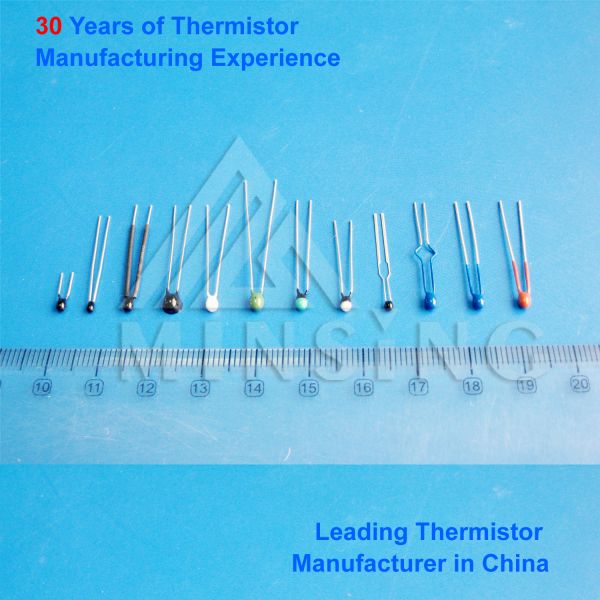

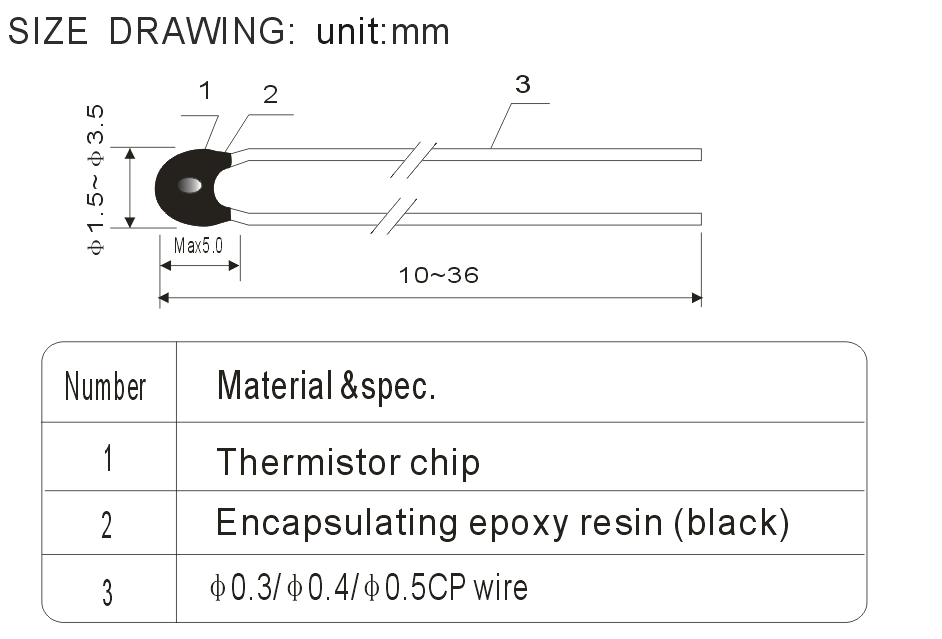

These negative temperature coefficient thermistors consist of a mini-chip soldered between two tin plated 0.4 mm nickel leads, coated with black colored epoxy lacquer and coded with a color dot.
Product Feature:
Epoxy coated / Miniature designed / Bare and bendable wire / Fast response
Application:
Temperature sensor / Electronic calendar and electronic thermometer / Temperature compensation
Mounting:
The thermistors are suitable for all standard assembly processes like crimping, soldering, welding, and potting into epoxy or silicon resins. The parameters and materials of the assembly process should be chosen in accordance with the lead-wire and coated body and validated in the application.
Specification Explain:
MJ MF 5A-3 -3470 -502 F
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Epoxy coating type 5A-3 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
| Specification |
R25℃ (KΩ) |
B25/50℃ (K) |
Disspation constant |
Thermal time constant |
Operating temp. range |
| MJMF5A-□-347/395/385-202□ |
2 |
3470/3950/3850 |
ln still air
≥ 2.1mW/℃
|
ln still air
≤ 10s
|
-40～+150℃
|
| MJMF5A-□-327/347/395-502□ |
5 |
3270/3470/3950 |
| MJMF5A-□-338/347/390-103□ |
10 |
3380/3470/3900 |
| MJMF5A-□-395/420/405-473□ |
47 |
3950/4200/4050 |
| MJMF5A-□-395/420/405-503□ |
50 |
3950/4200/4050 |
| MJMF5A-□-395/348-152□ |
1.5 |
3950/3480 |
| MJMF5A-□-397/418-104□ |
100 |
3970/4180 |
| MJMF5A-□-453-105□ |
1000 |
4530
|
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ. MF5A can be custom designed.
FAQ:
How to order?
1. The application of the NTC thermistor or temperature sensor:__________
2. The range of operation temperature:___°c to ___°c
3.The dimension and the drawing of the Thermistor
4. The R value:_____K ohm ±________% at _____°c,
5. The B value: (_____°c/____°c) = ______K ± _____%
6. Quantity demanded: _________ pcs
